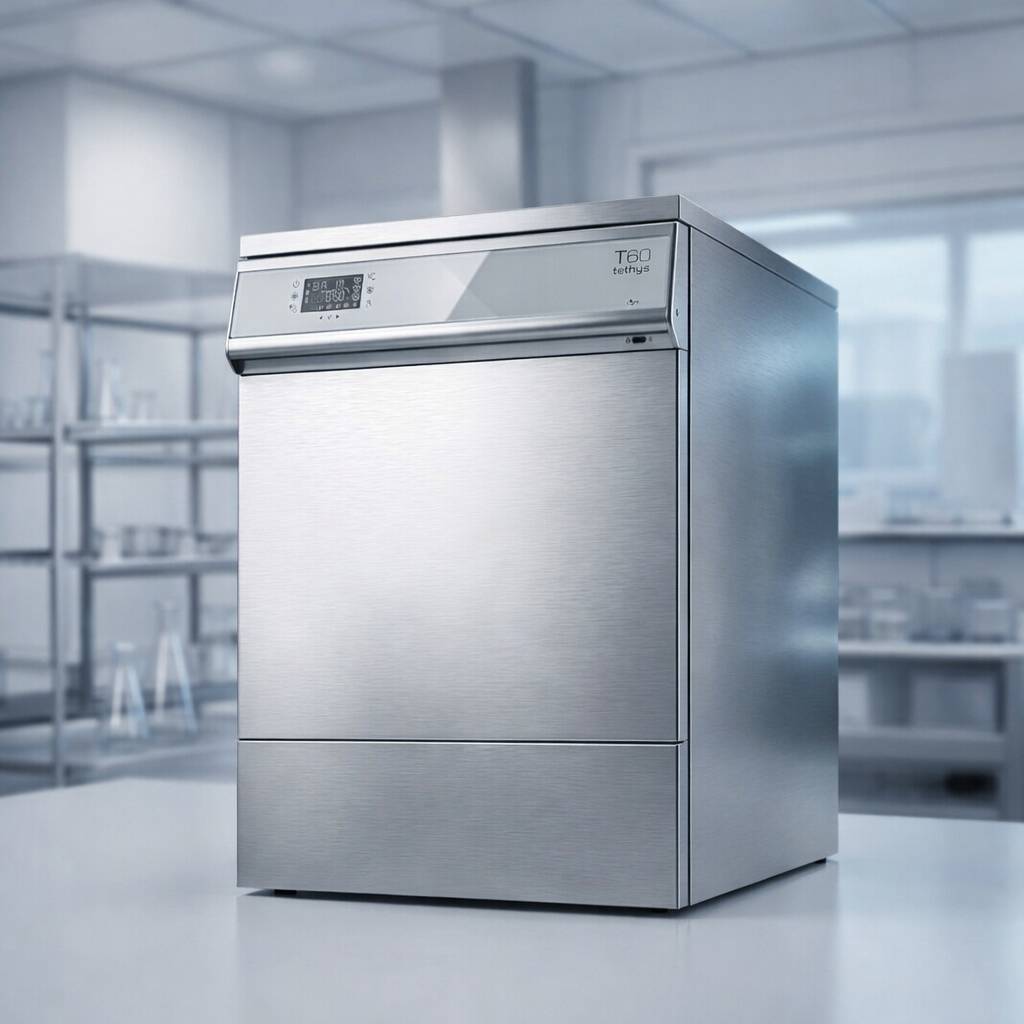

Mocom Tethys T60 Washer Disinfector
The New Mocom Tethys T60 Washer Disinfector – UnderBench Washer Disinfector

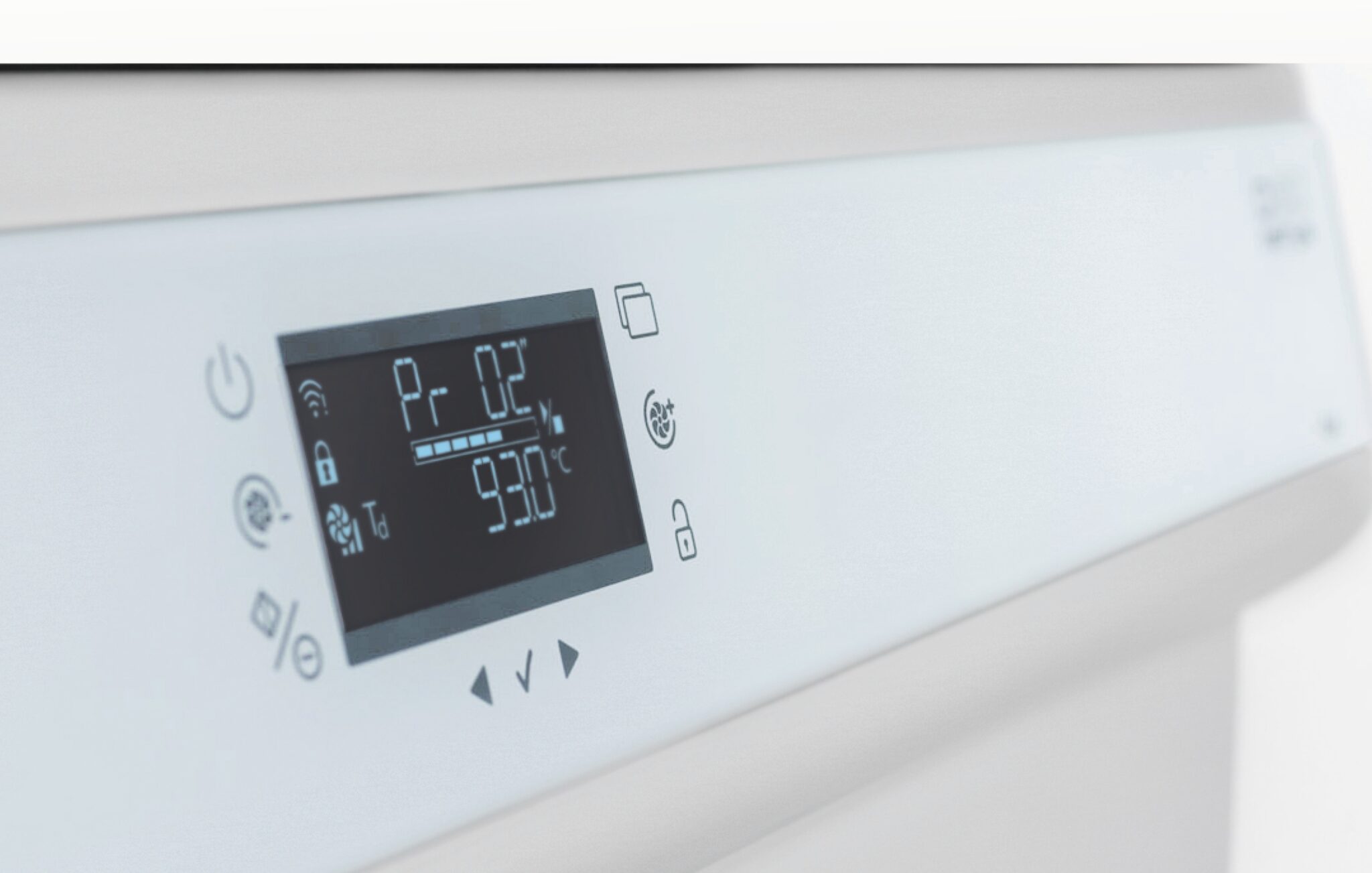

Tethys has a new, eye-catching front glass panel with integrated SOFT TOUCH controls to ensure durability, and hygiene, allowing simple yet comprehensive control of functions.
The LCD displays all information relating to operation of the device, with dynamic display of key parameters such as time, temperature and phase during the execution of each cycle.
Automation of the wash/disinfection process, reduced risk of contamination, time and resource savings, plus a range of readily available accessories make Tethys a key, highly advantageous investment..
Price includes either single or three phase power, please confirm which you require upon order.
£5,999.99
What are the primary differences between the Tethys D60, T60 and H10 models?
The Tethys D60 and T60 are specifically designed for washing and thermal disinfection, complying with EN 15883 standards.
In contrast, the Tethys H10 model features different specifications and may cater to different aspects of washing and decontamination.
The H10 is a benchtop washer, while both the D60, and T60 are underbench equipment.
The D60 also comes with a hot air generator which provides forced air into the chamber, while both the T60 and H10 have just a thermal drying with the door opening following the end of a cycle.
Do washer disinfectors provide sterilisation, or do they perform a different role?
Washer disinfectors provide high-level disinfection but do not sterilise; sterilisation requires a separate process and different equipment to eliminate all microbial life forms.
What are the typical phases involved in operating a washer disinfector cycle?
Typically, a washer disinfector cycle includes pre-washing, washing, rinsing, thermal disinfection, and drying to ensure thorough cleaning and disinfection of medical instruments.
| Technical Specifications | |
| Management System | Electronic with Microprocessor |
| Programs Available | 20 |
| Control Panel | Glass Panel with LCD Screen, Soft Touch Controls |
| Temperature Inside Chamber | From Room Temperature Up To 95 ͦ C |
| Temperature Sensors Inside Chamber (2x) | Resistance Thermometers PT 1000 cl. B (IEC60751) |
| Dosing System for Detergent and Neutralizer | Peristaltic pumps |
| Detergent and Neutralizer Level Senors | YES |
| Door Locking Systems | YES, electromagnetic with automatic release |
| Traceability | Cycle reports saved on internal memory (capacity over 100 cycles |
| USB Port | YES |
| RS232 Serial Port | YES (Optional) |
| Cycle Archive on PC | YES, With Exclusive Program |
| Washing Chamber Material | AISI 316L stainless steel |
| Outside Panels | AISI 304 stainless steel |
| Drying Systems | Thermal (door opening at the end of the cycle |
| Pre-Filter | NO |
| HEPA Filter | NO |
| Water Connection (1.5 – 5 ) | Mains cold water / Demineralised water / Main hot water (not for model T45) |
| Built-in Water Softener | Yes, automatic volumetric regeneration (up to 60°F) |
| Vapour Condenser | High-efficiency ECO SLIM system |
| Max Power | 3.0 kW |
| External Dimensions | 600x605x850 (830*) mm |
| Chamber Dimensions | 520x515x545 mm |
| Chamber Capacity | 168l |
| Weight | 72 kg |
| Voltage and Nominal Power | 3/N/PE 400V-50Hz – 7.0kW** 1/N/PE 230V-50Hz – 3.0kW |
| Noise | < 50 dB(A) |
NOTES:
*built-in version, with optional top.
**standard power supply: Tethys D/T60-400V tri-phase / Tethys T45-230V single phase. 60Hz versions available.
