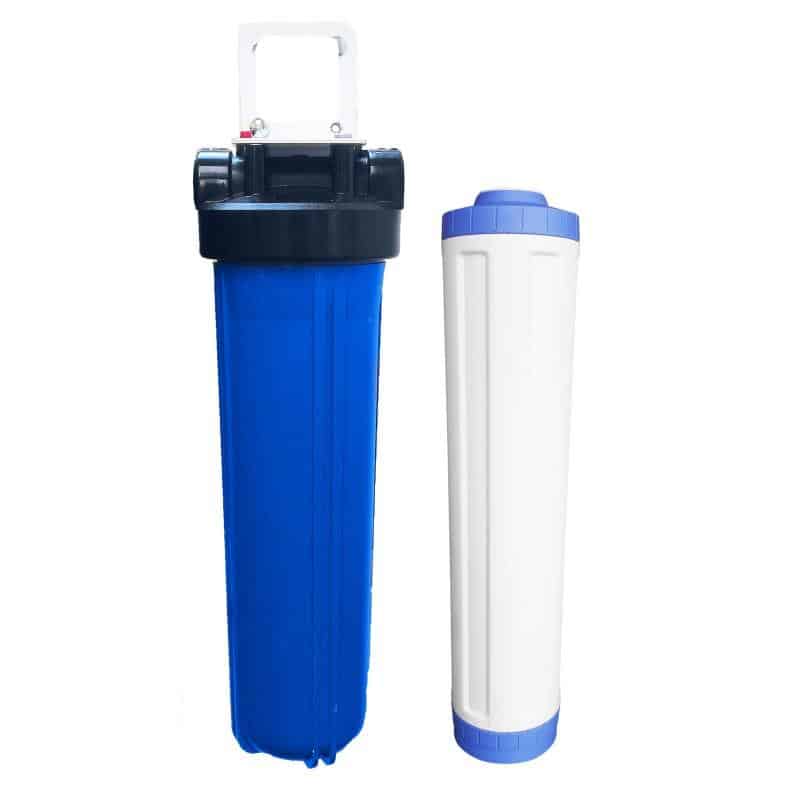

DDL DentalAqua NSWS XL Scale Tac Prevention System
Good from 20 to 30 litres/min at peak flow
The NSWS XL system prevents limescale using a filtration process with proven 99.6% effectiveness and will also descale existing pipework and appliances.
Long filter life of 3 Years.
Cost effective chemical and salt free alternative to a conventional water softener.
£425.00
The DentalAqua NSWS XL Scale prevention system is the larger version of the NSWS and is suitable for average/larger homes (including homes with Megaflow boilers) and small commercial settings. Proven scale prevention technology at 99.6% effective, a genuine alternative to conventional water softeners. If you would also like to filter your water at the same time as preventing scale (to remove chemicals, heavy metals, etc) then please search for our EcoPlus XL whole house filter which features both scale prevention and water filtration in one unit.
The softening effect takes place within the filter without adding any salt or chemicals into the water. The filter does this by using a process called Template Assisted Crystallization (TAC), which conditions the water and converts the hardness minerals in the water (Calcium and Magnesium) into harmless, inactive microscopic crystals. This prevents the Calcium and Magnesium from bonding together to form lime-scale, and also over time will de-scale existing pipework and appliances. Because of this process no natural minerals are lost from the water, and no chemicals or salts are added either.
Water which has undergone this filtration process has a softening effect which prevents scale from forming in pipework and appliances, around sinks and washbasins, and will help prolong the life and efficiency of your appliances. The scale prevention media has been tested independently against the international protocol for scale prevention and has achieved up to 99.6% effectiveness rating.
You will need to replace this filter in the system just once every 36 months (depending upon incoming water quality)
Compared to a water softener
We also have a full bore compression fittings bypass kit and flexible hoses available as an optional extra, these are useful for tight installations where the system cannot be installed in-line with the pipe and needs to go underneath / above the pipe instead. Please see “accessories” tab for fitting kits in 15mm and 22mm sizes,
We also have a full bore compression fittings bypass kit and flexible hoses available as an optional extra, these are useful for tight installations where the system cannot be installed in-line with the pipe and needs to go underneath / above the pipe instead. Please see “accessories” tab for fitting kits in 15mm and 22mm sizes,
The internal water filter media used in this system meets NSF 61 standard. This is the American standard for drinking water products which is world renowned and internationally recognised.
| Technical Data | ||
| Size: | 340mm height, (allow for fixing brackets overall height is 490mm). Width 240mm Depth 210mm | |
| Usage: | Small / average homes where flow rates will not regularly exceed 8 litres per minute | |
| Flow rate: |
(for large homes or with Megaflow boiler, please use our AquaHouse NSWS XL) |
|
| Filter change Life span: |
|
|
| Connections: | 3/4” BSP male threads on unit, to be connected inline with water mains pipe
(optional extra by-pass kit to fit either 15mm or 22mm pipes available – see “accessories” tab for bypass fitting kits) |
|
| Maximum Pressure: | 70 PSI | |
*Peak flow: The system will treat water up to the peak flow. The system can be run constantly at the lower end of the flow rate for 24/7, 365 days a year and maintain constant scale protection, the system will also maintain scale protection at peaks in flow of up to 20 lpm for several minutes but not constantly for hours/days at this flow rate.
For example, in a home setting, a bath may be filling at 8 lpm whilst in another room a toilet is flushed. This will result in a temporary peak in flow above 8 lpm however will not effect the performance of the system. If however you have several bathrooms, and/or appliances which draw a high flow of water – such as a megaflow boiler – you will require the larger AquaHouse NSWS XL system.
If you require a scale prevention system for a large home or high constant flow rate for commercial/industrial applications please see our AquaHouse NSWS XL version of this system, or our commercial High Flow Scale prevention system.
